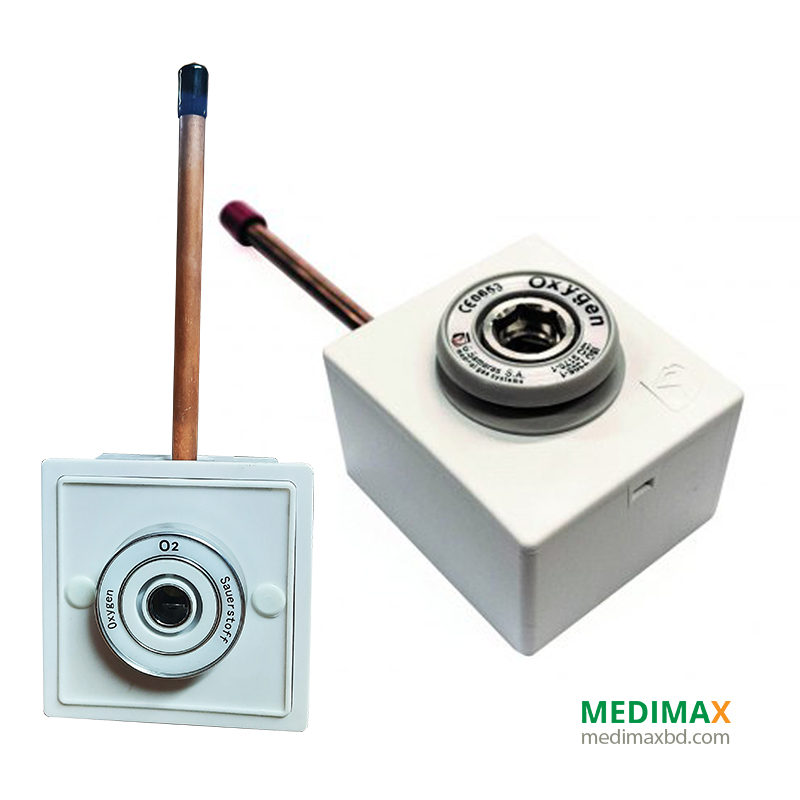

Medical Gas Terminal Unit (Outlets)

Description

Medical Gas Terminal Unit (Outlets), Medical compressed gases and vacuum outlets are suitable for external or internal wall mounting, for bed head unit and ceiling pendant installation. Two-part outlets are composed of the base part and the finishing part according to EN ISO 7396-1 & 2, EN ISO 9170-1 & 2 standards. 100% tested. Pressure capacity 400 kpa.

Outlet Category: Medical Oxygen Outlet, Medical Vacuum Outlet, Medical Compressed Air, Nitrous Oxide & AGSS Outlets.

Features:

• The base part, made of chrome-plated brass, consists of: Automatic shut-off valve for maintenance to permit replacement of the finishing part without having to interrupt gas delivery to other outlets and-
• Threaded inlet connection, specific for each type of gas, complete with nut, mouthpiece and copper tube suited for braze-welding to the pipeline system and-
• Threaded outlet connection, specific for each type of gas, for connection to the finishing part
• The finishing part made of chrome-plated steel, equipped with: Threaded inlet connection, different for each type of gas, complete with OR seal ring and-
• Automatic spring-operated valve and filter and-
• Outlet connection with different connection fitting for each type of gas and-
• Outlet’s cap is available in anodised aluminum, plastic or antimicrobial copper

Technical Parameter
